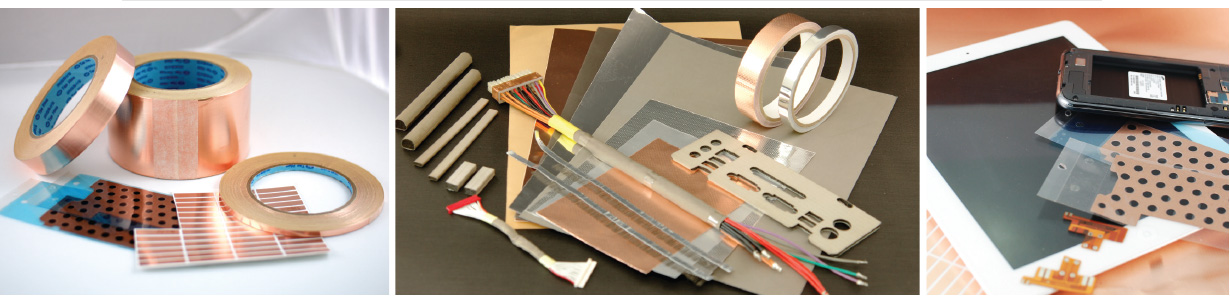

제품 사진

specification
Product
No.
Backing
thickness
(mm)
Adhesive
Type
Overall
thickness
(mm)
Length
(M)
Peel
adhesion
(gf/in)
Breakdown
voltage
(kv)
Heat
resistence
(℃)
Conductivity
(Ω/in)
Remark
A-3325 Copper foil
(0.025)
Acrylic 0.060 30 - - 130 - Prevention Noise & Static charge,
Connecting
A-3325B Copper foil
(0.025)
Acrylic 0.060 30 700 - 130 - Shielding Stained Glass
Black Color Adhesive
A-3338 Copper foil
(0.035/0.040)
Acrylic 0.070 30 800 - 130 - Prevention Noise & Static charge,
Connecting
E-3318 Copper foil
(0.018)
Conductive
Acrylic
0.040 30 800 - 130 0.5↓ EMI Shielding, Connecting
Prevention Noise & Static charge
E-3325 Copper foil
(0.025)
Conductive
Acrylic
0.050 30 700 - 130 0.5↓ EMI Shielding, Connecting
Prevention Noise & Static charge
E-3338 Copper foil
(0.035)
Conductive
Acrylic
0.060 30, 50 700 - 130 0.5↓ * UL Approval
EMI Shielding, Connecting
E-3338A Embossed
Copper foil
(0.035)
(Conductive)
Acrylic
0.080 30 700 - 130 0.5↓ Embossed Copper Foil type
EMI Shielding, Connecting
E-3336 Tin-Clad
Copper foil
(0.035)
Conductive
Acrylic
0.060 30 700 - 130 0.5↓ Both Tin Clad Copper Foil Backing
EMI Shielding, Connecting
E-3350 Copper foil
(0.050)
Conductive
Acrylic
0.075 30 700 - 130 0.5↓ EMI Shielding, Connecting
E-3325D Copper foil
(0.025)
Conductive
Acrylic
0.075 30 800 - 130 0.5↓ Double-Side Type
EMI Shielding, Connecting
E-3335D Copper foil
(0.035)
Conductive
Acrylic
0.085 30 800 - 130 0.5↓ Doubler-Side Type
EMI Shielding, Connecting
C-3340 Copper foil
(0.040)
None 0.040 30 - - - 0.1↓ Non Adhesive Type
EMI Shielding of Conductive Tiles
H-4340 Aluminium
foil (0.040)
Acrylic 0.070 30 800 - 130 - Prevention For Noise & Static
Charge
Themal Resistant Connecting Duct
E-4340 Aluminium
foil (0.040)
Conductive
Acrylic
0.065 30 800 - 130 0.5↓ * UL Approval
EMI Shielding, Connecting
E-4340A Embossed
Aluminium
foil (0.040)
(Conductive)
Acrylic
0.080 30 700 - 130 0.5↓ Embossed Alminium Foil type
EMI Shielding, Connecting
EF-4335 PET Film
(0.025)
Conductive
Acrylic
0.060 30 700 - 130 0.5↓ EMI Shielding, Connecting
HF-4335 : Acrylic PSA Type
S-4370 Aluminium
Foil (0.070)
Silicone 0.110 30 700 - 130 0.5↓ Optical Instruments for Thermal
Resistant
Black Color Silicone Adhesive
H-4325D Aluminium
Foil (0.025)
Acrylic 0.085 30 800 - 130 - Double-Side Type, Splicing for Sensor
Themal Resistant Connecting Duct
E-4325D : Conductive Acrylic PSA Type
